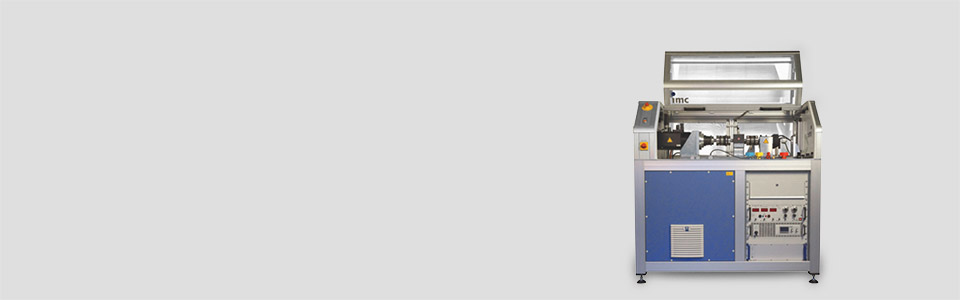

Development test stand for wheel hub motors

Testing e-motors for electric bicycles

  • test object supply: bis 80Vdc, 170Adc
  • electronic load: 1kW
  • inverter for test stand control is freely programmable
  • load machine: up to 10,000 RPM, with gear unit 1,200RPM
  • torque measurement: dual range measuring shaft 10/100Nm

imc hardware

  • imc CRONOScompact: real-time, measurement, open- and closed 16-channel-loop control system with HV-conditioner for voltage up to 1,000V. The modular system can be extended easily

imc software

  • the visualization, recording, analysis and archiving is done with the imc STUDIO measurement software
  • imc FAMOS Pro is used for signal analysis
